Application
LTE antenna
LTE antenna

LTE antenna

Application:
wireless router
Wireless Security Products
Wireless Smart Home

Category:

LTE antenna

Online Inquiry

Detailed

Main Specifications:

LTE band passive antenna
50 ohms

Mechanical Properties:
Connector: SMA, Thread Gauge: 1/4-36UNS-2B
Operating temperature: -40~80°C
Storage temperature: -40~80°C
Torque test: 500~1200gf.cm
Pull test: ≧5Kg

Electrical Properties:
Frequency: 824~960MHz/1710~2690MHz

Impedance: 50 ohms
VSWR: ≤4.0
Polarization: Linear Polarization
Radiation: omnidirectional
Power: 2W MAX.
Maximum gain: 2dBi
Efficiency: >50%

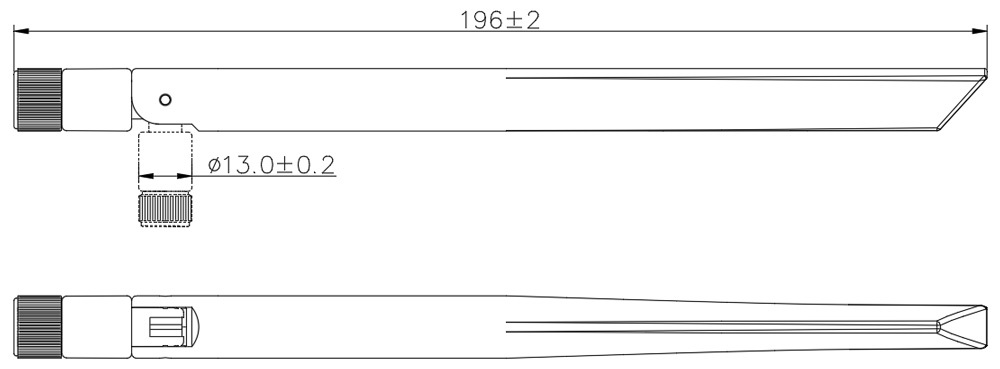

 Outline Drawing:
