Application

WiFi Antenna

Application:
wireless router
Wireless Security Products
Wireless Smart Home

Category:

WiFi antenna

Online Inquiry

Detailed

Main Specifications:

WiFi Band Passive Antenna
50 ohms

Mechanical Properties:
Connector: SMA, Thread Gauge: 1/4-36UNS-2B
Operating temperature: -40~80°C
Storage temperature: -40~80°C
Torque test: 500~1200gf.cm
Pull test: ≧5Kg

Electrical:
Frequency: 2400~2483MHz/5150~5850MHz
Characteristic impedance: 50 ohms
VSWR: ≤2
Polarization: Linear Polarization
Radiation: omnidirectional
Power: 2W MAX.
Maximum gain: 5dBi
Efficiency: >60%

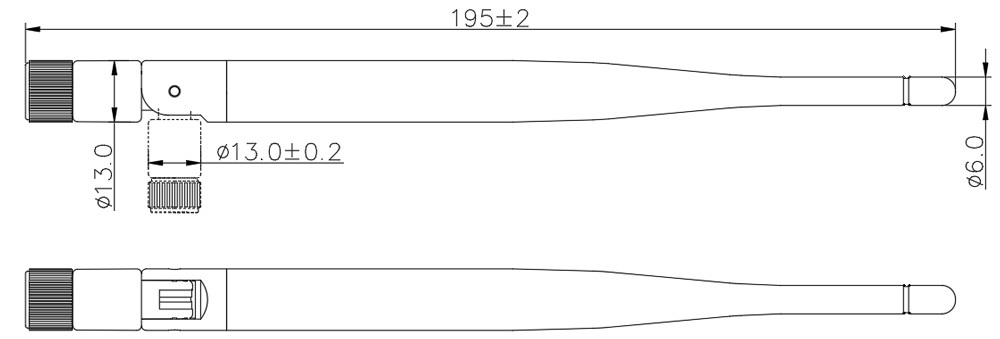

Outline Drawing:
