UHF walkie-talkie antenna
Application:
walkie-talkie
Wireless dispatcher
walkie-talkie
Wireless dispatcher
Category:
Detailed
Main Specifications:
UHF band passive antenna
50 ohms
Mechanical Properties:
Connector: nickel-plated copper alloy, tooth gauge: 1/4-36UNS-2A
Operating temperature: -40~80°C
Storage temperature: -40~80°C
Torque test: ≧1.8N.m
Pull test: ≧23Kgf
Salt spray test: 48 hours
Connector: nickel-plated copper alloy, tooth gauge: 1/4-36UNS-2A
Operating temperature: -40~80°C
Storage temperature: -40~80°C
Torque test: ≧1.8N.m
Pull test: ≧23Kgf
Salt spray test: 48 hours
Electrical:
Frequency: 400~450MHz/440~490MHz/470~530MHz
Characteristic impedance: 50 ohms
VSWR: ≤3
Polarization: Linear Polarization
Radiation: omnidirectional
Power: ≤8W
Frequency: 400~450MHz/440~490MHz/470~530MHz
Characteristic impedance: 50 ohms
VSWR: ≤3
Polarization: Linear Polarization
Radiation: omnidirectional
Power: ≤8W

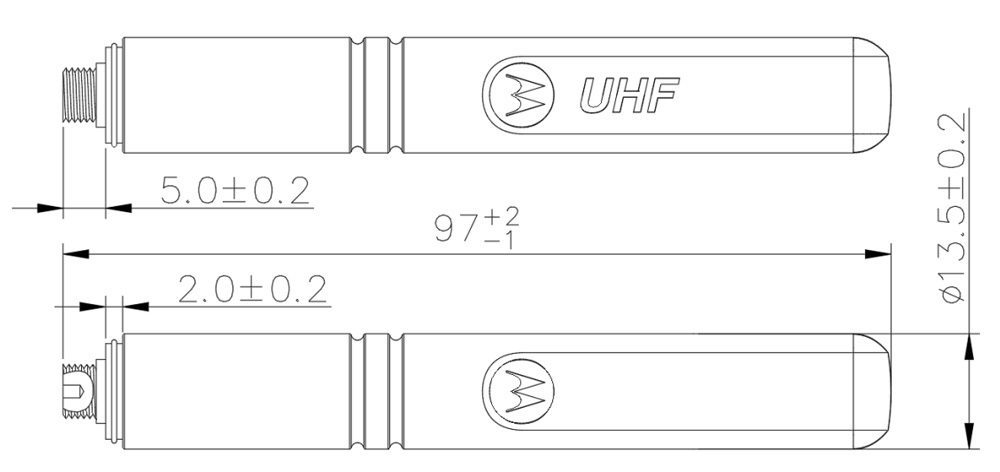

Outline Drawing:
