ED11C03M- 11mm dynamic encoder
Application:
Communication Electronics
Home Appliances
Vehicle Electronics
Medical Electronics
Communication Electronics
Home Appliances
Vehicle Electronics
Medical Electronics
Category:
Detailed
Main Specifications:
Operating temperature range: -30~+80℃
Switch: Push
Operating temperature range: -30~+80℃
Switch: Push
Mechanical Properties:
Rotation angle: 360°
Number of Positions: 12
Rotation torque: 350~500gf.cm
Switch pressing force: 1500±500 gf
Switch pressing stroke: 0.5±0.2mm
Rotation angle: 360°
Number of Positions: 12
Rotation torque: 350~500gf.cm
Switch pressing force: 1500±500 gf
Switch pressing stroke: 0.5±0.2mm
Electrical:
Rated voltage: 5v DC
Rated current: 2.5 mA

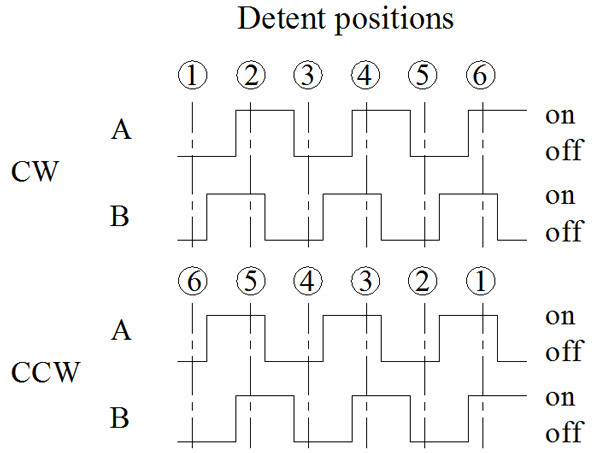

Output signal: phase difference (8 pulse signals)
Resistive load: Max 2.5mA; Min 0.5mA
Switch contact resistance: 200 mΩ below
Insulation Resistance: 250V DC, 100MΩ Min
Withstand voltage: 300V AC, 1minute
Switching power: DC 5V 1mA
Rated voltage: 5v DC
Rated current: 2.5 mA
Output signal: phase difference (8 pulse signals)
Resistive load: Max 2.5mA; Min 0.5mA
Switch contact resistance: 200 mΩ below
Insulation Resistance: 250V DC, 100MΩ Min
Withstand voltage: 300V AC, 1minute
Switching power: DC 5V 1mA
Durability:
Waterproof: None/IP67
Soldering: hand soldering, wave soldering
Rotational life: 55000 cycles
Press life: 75000 times
Waterproof: None/IP67
Soldering: hand soldering, wave soldering
Rotational life: 55000 cycles
Press life: 75000 times

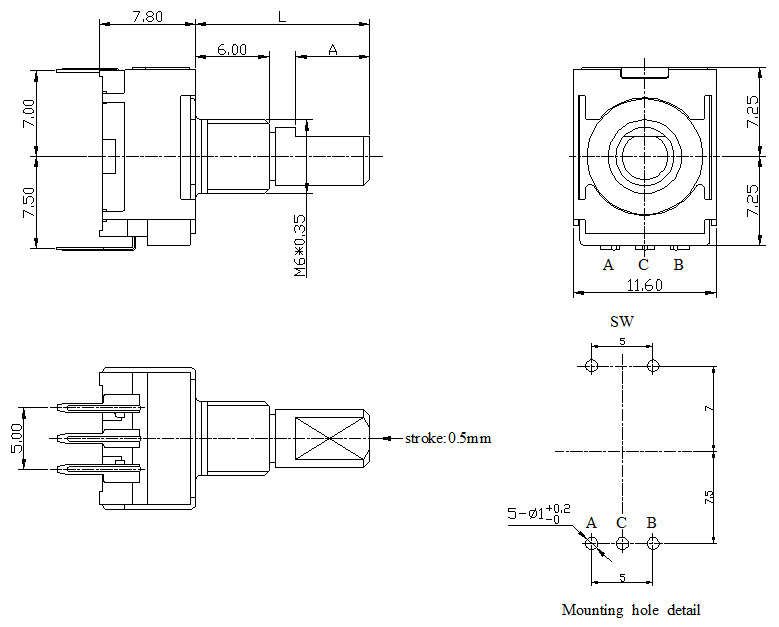

Outline Drawing:
